No neutral wire required
Designed for installations where a neutral wire is unavailable at the wall switch.
1
3
images
Smart Lighting

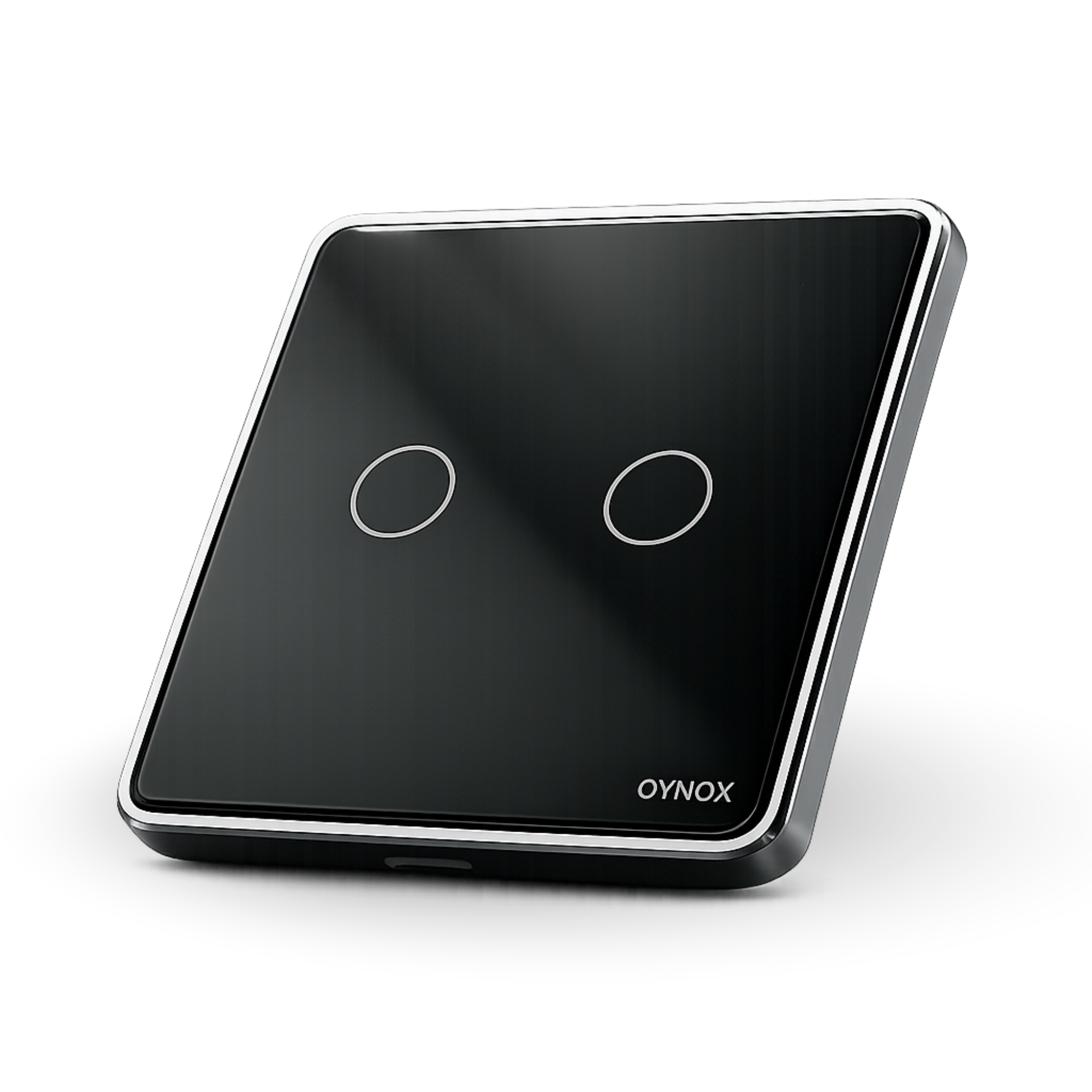

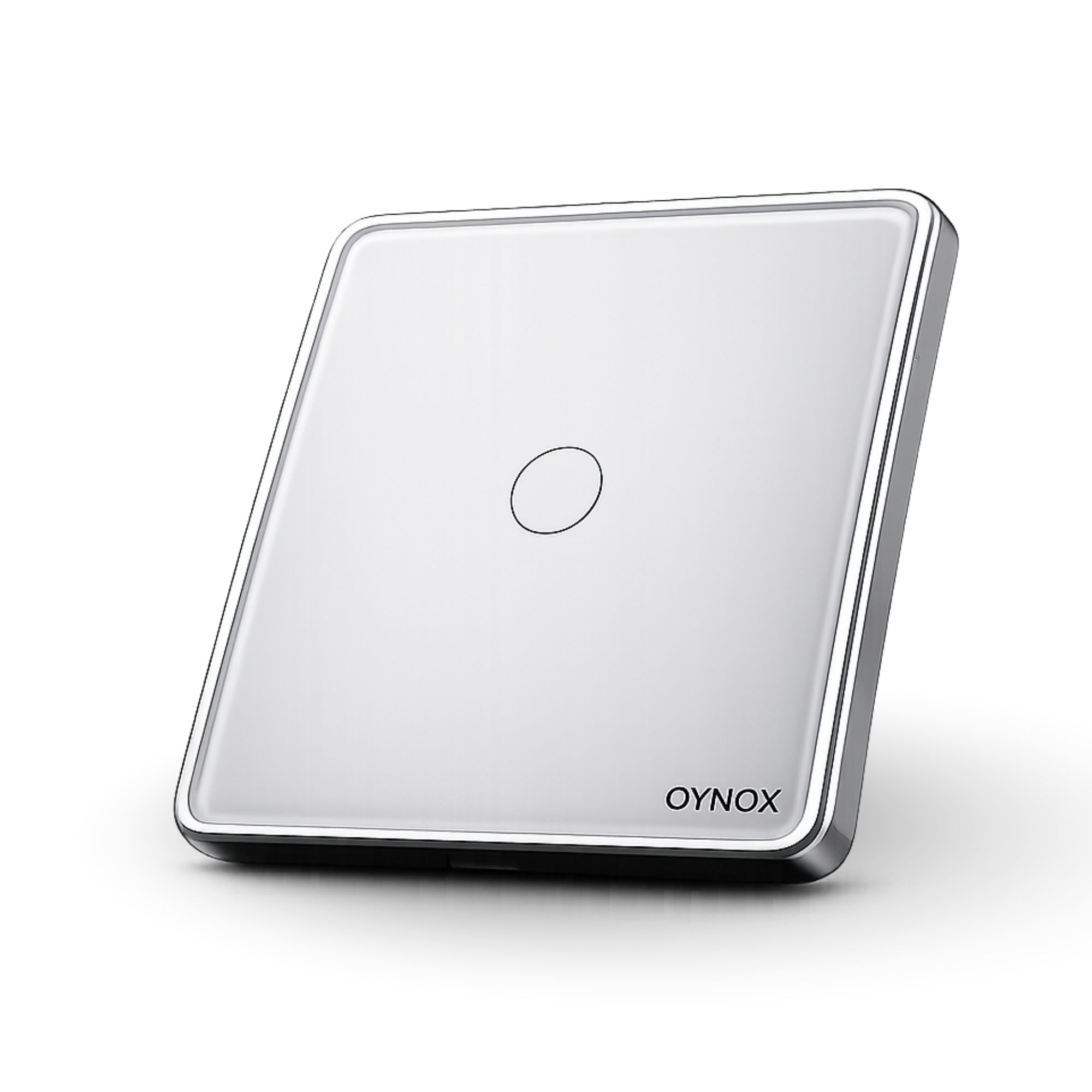

Oynox Edge
Oynox Edge
Smart Switch
A refined Zigbee touch switch that modernizes everyday lighting—without requiring a neutral wire.
Designed for straightforward upgrades, Edge combines a tempered-glass touch surface with reliable manual wall control and connected automation.
- No neutral wire required
- Manual touch control remains available
- One, two and three-gang options
Configurations
1 gang · 2 gang · 3 gang
Panel colours
Black · White
- 1 yearWarranty
- Manual + screwsIncluded
- Oynox supportAfter purchase
Designed for Everyday Use
Smart control without losing the familiar switch
Edge adds connected control while keeping everyday operation simple for everyone at home.
Manual control stays available
Lighting can still be controlled directly from the touch panel during normal everyday use.
Built around Zigbee
Connect Edge to a compatible Zigbee setup for remote control, scenes and scheduled automation.
Installation
A straightforward lighting upgrade
Choose the gang configuration and colour that suit your room. Edge is installed in place of a conventional wall switch and supports manual control after installation.
Professional installation available
Oynox can provide professional installation for an additional fee. Pricing depends on the location and scope of work; contact us through WhatsApp for an estimate. Mains electrical work should always be completed by a qualified installer.
Ask about installation on WhatsApp
Inside the Box
Everything required for mounting
- 01Oynox Edge Smart Switch
- 02Instruction manual
- 03Mounting screws
One-year product warranty
Supported by Oynox after purchase.
Technical Details
Product specifications
Electrical
- Input voltage
- 100–240 V AC, 50/60 Hz
- Maximum power
- 2,000 W
- Maximum current
- 10 A
- Neutral wire
- Not required
Connectivity & configuration
- Networking
- Zigbee
- Gang options
- 1, 2 or 3 gang
- Panel colours
- White or black
- Frame finish
- Silver aluminium
- Manual operation
- Available
Physical & operating
- Dimensions
- 86 × 86 × 35 mm
- Panel
- Single-crystal tempered glass
- Housing
- ABS with aluminium-alloy frame
- Operating temperature
- −20°C to +50°C
- Rated service life
- 100,000 operations
- Fire-protection rating
- 94 V-0
Questions
Before you order
Need help confirming wiring, colour or gang configuration? Message Oynox before purchasing and we’ll help you choose.
Ask Oynox on WhatsAppDoes Oynox Edge require a neutral wire?
No. This version is designed to operate without a neutral wire at the wall switch.
Can I still control the light manually?
Yes. Manual control remains available directly from the touch panel.
Which configurations are available?
Edge is available in one, two and three-gang configurations with black or white panels and a silver aluminium frame.
What is required for connected smart control?
A compatible Zigbee setup is required for connected features. Contact Oynox and we can confirm the right setup for your installation.
Can I install the switch myself?
Because installation involves mains electricity, we recommend using a qualified installer.
